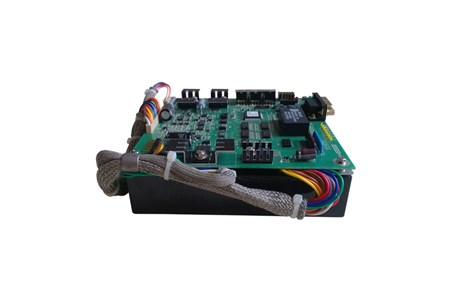

E5764HD-P1 Toshiba HV Power Supply for Image Intensifier
The E5764HD‑P1 high‑voltage power supply is a dedicated power module designed for Toshiba X‑ray image intensifiers. It provides stable high‑voltage output and adjustable multi‑channel voltage to ensure clear, stable imaging for fluoroscopy systems. This unit serves as a direct, reliable replacement for the original Toshiba HV power supply.
Product Overview
This HV power supply is specially built to drive Toshiba image intensifiers in C‑arm X‑ray machines, gastrointestinal systems, lithotripsy equipment, and other fluoroscopy devices. It features adjustable multi‑port output and stable high‑voltage performance, effectively supporting image clarity and system durability.
Key Features
- Dedicated power supply for Toshiba image intensifiers
- HV port output up to 30 kV for stable operation
- Adjustable G1, G2, G3 voltages to optimize image definition
- Perfect mechanical and electrical replacement for original Toshiba units
- Compact structure for easy installation and maintenance

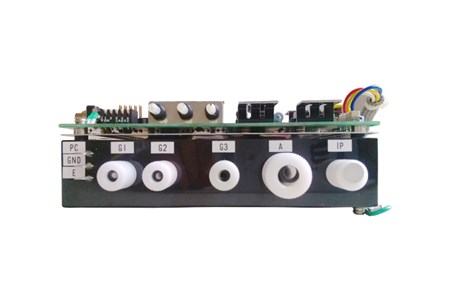

Technical Parameters
| Item | Specification |
|---|---|
| Input | 24V ±1V, 600mA |
| G1 Output | 100–200V, adjustable 140V, 5–50μA |
| G2 Output | 100–900V, P1 600V / P2 750V, 1–50μA |
| G3 Output | 1.0–12kV, adjustable 3kV, 1–20μA |
| HV Output | 28–32kV, adjustable 30kV, 3–20μA |
Application Scope
E5764HD‑P1 is widely used in medical imaging equipment equipped with Toshiba image intensifiers, including:
- C‑arm X‑ray systems
- Digital gastrointestinal fluoroscopy machines
- Lithotripsy devices
- Other fluoroscopy and radiography equipment
It ensures stable high‑voltage supply and adjustable image parameters, helping maintain clear and consistent imaging during clinical procedures.
Why Choose E5764HD‑P1
- Direct replacement compatible with original Toshiba structure and interface
- Stable high‑voltage output reduces noise and ensures image quality
- Adjustable multi‑channel voltage supports fine‑tuning for different scenarios
- Reliable performance lowers maintenance frequency and extends intensifier life
- Suitable for hospital equipment maintenance and fluoroscopy system repair
If you need to replace a faulty HV power supply for your Toshiba image intensifier, the E5764HD‑P1 module is a cost‑effective and dependable solution to restore your imaging system to normal working condition.
