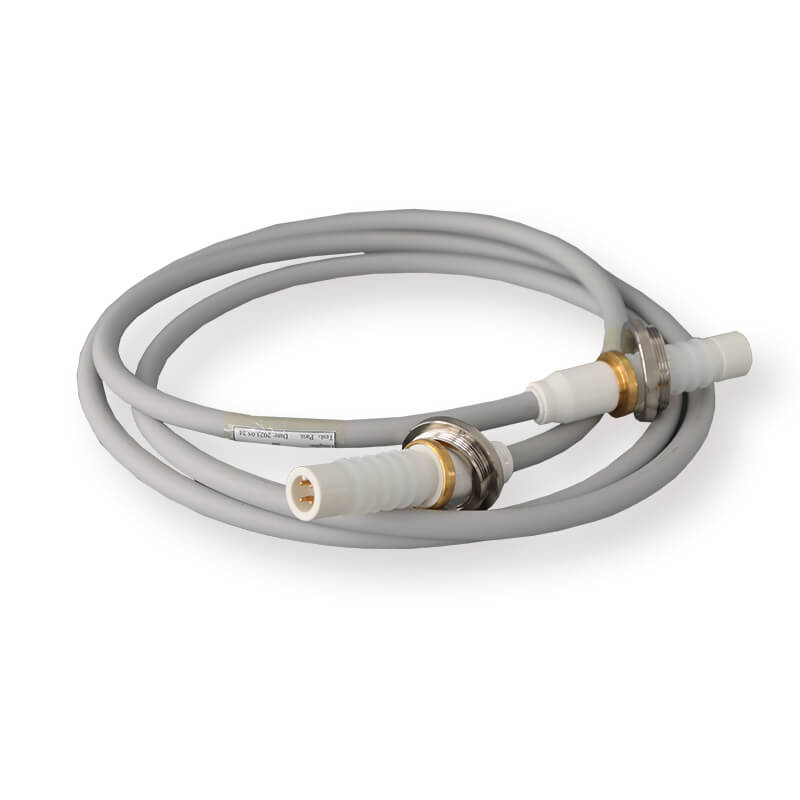

CA11 High Voltage Cables: The Reliable Power Link for X-ray Image Intensifier Systems

Every X-ray image intensifier (XRII) relies on a steady, high-voltage power supply to convert X-rays into clear, usable fluoroscopy images—and the CA11 High Voltage Cables (NK-CA11-T4) are the critical link that makes this possible. Designed for medical-grade reliability, these cables connect the X-ray tube to the high-voltage generator, ensuring stable power delivery to keep your XRII system running smoothly, even during long, high-demand procedures.

For XRII systems used in orthopedics, interventional radiology, and gastrointestinal fluoroscopy, power instability is one of the most common causes of grainy images, flickering displays, or unexpected shutdowns. The CA11 high voltage cables eliminate these risks. Rated for 75KVDC with 4-pin conductors, they deliver consistent power flow to both the generator and the image intensifier, preventing voltage drops that can degrade image quality or damage sensitive XRII components.

A key advantage of these cables for XRII setups is their flexibility and customizability. Whether you’re working with a fixed fluoroscopy suite or a mobile C-arm unit, the cables can be cut to custom lengths (2m, 4m, 6m, 10m, 15m, 20m, or more) to fit your exact system layout. They also support straight or 90° angled terminations, making installation easier in tight spaces, like the cable hoses common in mobile XRII systems. The slip-on ring nut design lets you pass the cables through small openings without hassle, simplifying upgrades or maintenance.

Safety and durability are non-negotiable in medical environments, and the CA11 cables meet these demands. With an insulation resistance of >10¹⁵Ω and a maximum operating temperature of 100°C, they resist heat, wear, and electrical breakdown, even during continuous use in busy ORs or clinics. The 15A current rating ensures stable power delivery, while the 4KVDC maximum continuous voltage between pins protects both the generator and the image intensifier from electrical damage.

For facilities looking to upgrade or maintain their XRII systems, choosing the right high voltage cable is just as important as maintaining the intensifier itself. The CA11 cables are built to work seamlessly with all standard XRII setups, providing the reliable power link you need to keep images clear, procedures running, and patients safe.
