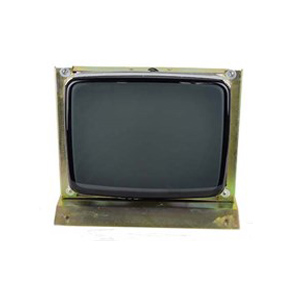

Newheek NK1410AN-I Medical X-ray Built-in Monitor

The Newheek NK1410AN-I is a dedicated grayscale monitor developed for medical X-ray imaging use. Equipped with professional display parts and advanced signal processing technology, it delivers high contrast and abundant image details. With flexible scanning modes, this display can work with different types of medical imaging systems, fully meeting the strict standards for clinical medical image presentation.

This monitor is a perfect match for X-ray equipment from well-known medical manufacturers. It can directly replace the original built-in screens on these machines for easy part swapping. Besides regular replacement work, it is also widely used in upgrading and renovating X-ray machine remote control systems, bringing improved performance to old medical devices.

This monitor boasts excellent resolution performance. Its central area reaches over 1000 horizontal lines, and the edge area stays above 800 lines, keeping images sharp all over the screen. It supports more than 16 brightness discrimination levels, which helps distinguish subtle grayscale changes in X-ray pictures. The A-grade model offers maximum brightness up to 100cd/m², suitable for daily clinical working environments.

Strict quality control is applied to reduce image distortion. Its geometric distortion is within 3% and non-linear distortion below 5%. The spot diameter is controlled under 0.25mm, so the displayed medical images remain authentic and clear without deformation.

The device adopts AC220V power supply, operating at 50Hz with a tolerance range of ±1Hz. Its total power consumption is no more than 45VA, energy-efficient for long-term continuous operation. It supports two mainstream interlaced scanning standards: CCIR 625/50 and EIA 525/60, ensuring great compatibility with various medical equipment signals.

It uses standard BNC video input port with 75Ω input impedance. The input video signal ranges from 0.5 to 2Vp-p, and the -3dB video bandwidth is no less than 12.5MHz. The classic 4:3 aspect ratio fits the traditional design of medical X-ray devices.

The monitor comes with a 35cm screen. Its overall dimension is 32cm × 30cm × 30cm, and the total weight is 10kg. The compact structure makes it easy to embed into the reserved installation position of X-ray machines.

A complete set includes one main monitor, one power cord, a user manual and a product qualification certificate. All accessories are fully prepared for quick installation and normal use right after delivery.

Whether you need to replace old built-in monitors or carry out medical equipment upgrades, the Newheek NK1410AN-I is a reliable choice. With outstanding display performance, wide compatibility and stable running status, it has become a practical supporting display for medical X-ray systems.
