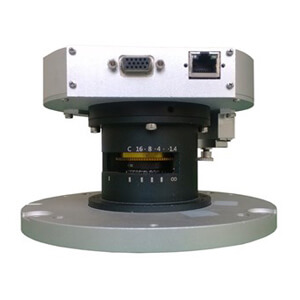

Newheek NK1566 1kx1k Digital Camera for Image Intensifier

1. Product Overview

2. Core Applications

• Medical diagnostic imaging: It pairs with X-ray equipment to deliver clear, real-time images for clinical procedures, supporting low-dose radiation workflows with excellent contrast.
• Industrial inspection: It enables precise flaw detection and quality control in non-destructive testing setups, where consistent and reliable imaging is critical.

3. Key Features

• Gigabit Ethernet (GigE) output: Ensures stable, fast data transmission while reducing maintenance complexity and long-term costs.
• 1024×1024 resolution @ 25 fps: Delivers sharp, full-frame imaging with smooth real-time performance, supported by a 12-bit ADC for rich grayscale depth.
• Advanced image processing: Built-in functions include real-time noise reduction, shading correction, edge enhancement, and blemish correction, resulting in cleaner, more usable images even at low dose levels.
• High sensitivity and dynamic range: With a sensitivity of 0.02 lux and SNR of 64 dB, it captures clear details under low-light conditions without sacrificing image quality.
• Flexible control options: Motorized aperture, manual focusing, and adjustable exposure, gamma (0.45~1.0), and frame rate parameters let users tailor performance to specific procedures.
• Wide compatibility: Supports C/CS lens mounts, TTL trigger input, and synchronization with X-ray facilities, simplifying integration into existing systems.

4. Technical Specifications

5. Why Choose the NK1566 Camera?
