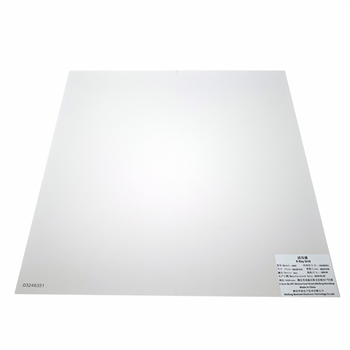

C-Arm Anti-Scatter Grid
introduction
We are a professional agent for C-arm anti-scatter grids. Our products are developed around real clinical needs, delivering strong anti-scatter performance, clear imaging quality, and long-term durability. Custom solutions are available to match various medical imaging setups and clinical scenarios.
Core Advantages
| Advantage Category | Features | Clinical Benefits |
|---|---|---|
| High Anti-Scatter Efficiency | Made with high-purity lead materials for the core grid components. | Effectively absorbs scattered radiation, reduces image artifacts, and improves diagnostic accuracy. |
| High-Definition Imaging Support | Stable manufacturing process combining aluminum base and lead strips precisely. | Ensures sharp, detailed images that meet the needs of clinical diagnosis and observation. |
| Long-Lasting Durable Design | Lead strips enclosed in smooth aluminum covers with a ceramic glaze coating. | Protects against heat and dust, lowering routine maintenance costs and extending product life. |
Key Specifications & Customization
Our C-arm anti-scatter grids offer full customization across four core dimensions, with standard options in stock and special configurations available on request:
| Parameter Category | Standard Range | Customization Notes |
|---|---|---|
| Size | 5″×7″ to 14″×51″ (grid size is typically 1″ larger than the corresponding film size). | Custom sizes available to fit specific C-arm models and clinical applications. |
| Grid Ratio | 3:1 to 15:1 (ratio of lead strip height to interspace width). | Selectable ratios to match different tissue penetration and imaging requirements. |
| Focal Distance | Short (26″-32″), medium (34″-44″), long (40″-72″, including 48″-72″ / 60″-72″), and parallel (infinite focus). | Covers both common and special focal lengths to ensure precise image alignment. |
| Grid Density | 60 lines/inch, 70 lines/inch, 85 lines/inch (high density), 103 lines/inch (ultra-high density), 105 lines/inch (non-visible), 170-200 lines/inch (ultra non-visible). | Different densities support varying detail requirements for diverse clinical scenarios. |
Why Choose Our C-Arm Grid?
- Reduces scattered radiation for clearer, more readable images
- Durable construction minimizes maintenance and replacement costs
- Flexible customization to fit nearly all C-arm systems and use cases
- Designed for long-term, reliable performance in daily clinical environments
